TV amplifier

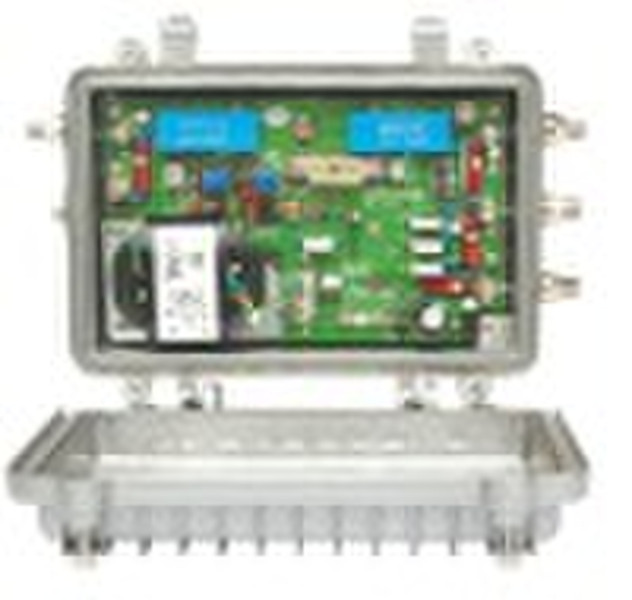

TVAmplifier with two way high gain amplifypower drivemulti-ports output broadband bi-directional(bridge)Amplifier, compensate cable transmitting for RF-signal loss in CATV system. VA-860B3 serial broadband bi-directional amplify is two grade module amply design: low noise module (wideband hybrid)amplifier in preposition. Use plug-in design improve non-linear index of output signal. Return path design with inputoutput signal -20dB test point and inputoutput signal level adjustment function. This product have high work efficient and stable work capability, and widely practicability. Features: (1) 1000MHz bidirectional design,(550/750/862MHz). (2) SMD and SMT . (3) Bidirectional filter with plug-in design, 30/42/65MHz. (4) Plug-in equal adjustment. (5) Plug-in slope circuit, improve signal non-linear distortion. (6) ATT and AGC adjust continously (range:0-20dB). (7) Single output can enlarge to two or more than two output. (8) RF output -20dB test point. (9) Power supply: 60V/AC and 220V/AC optional. (10) With ATC(Automatic Temperature Compensation). (11) With over-current protection and lightningproof. RF Parameter: Item UnitForwardReverseRemarksFrequency RangeMHz** 750 / 862MHz5 65(30/42)MHzAccording to customers requirements: 30/42/65MHzFlatness in banddB≤± 0.75≤± 0.75Return lossdB≥ 16@87 550MHz≥ 14@550 862MHz≥ 16≥ 14@550 862MHzNominal working gaindB263034Min. GaindB283236Nominal output leveldBuv98102106C/CSOdB706764/C/CTBdB746862/Noise figuredB98MGC ATT AdjustmentdB2dB step2dB stepOption:0 20dB adjustableSlope AdjustmentdB2dB step or 0 20dB adjustableOption:0 20dB adjustableIN/Out ImpedanceΩ75Test LeveldB-20 ± 1Relative to tested pointAC/N%1ATC-RangedB± -1.0Power SupplyV/AC60 or 220Pass AC currentA /AC8Power SupplyRF Connector TypeF-connector or 5/824 connectormm or inchPower ConsumptionW20Max)Storage-40 +70 (40 80% Non-acidity)Operating Temperature-25 +55SizeMmL240×H190×B85mm
